20x20x06mm
General Specifications
- Material……Frame:Plastic(Flammability:UL94V-0),Impeller:Plastic(Flammability:UL94V-0)
- Expected life……(ball bearing 50000 hours, sleeve bearing 30000 hours) continuous running under the condition of 40℃ , 15~65 % humidity
- Motor protection function……Looked rotor burnout protection, Reverse polarity protection
- Dielectric strength……50/60Hz,500VAC,for 1minute
- Insulation resistance……≥ 10 MΩ ,
(Through applying 500VDC between impeller hub center and lead wire (+) )
- Sound pressure level(SPL)……At 1m away from the air inlet
- Storage temperature……-30 to +70°C(Non-condensing)
- Lead Wire…… +Red -Black Yellow（sensor）Brown (Control)
(For models without PWM control function,there is no speed control wiring.)
- Mass……3.94g
Related Cooling Fans
- Specification
- Characteristics Curves

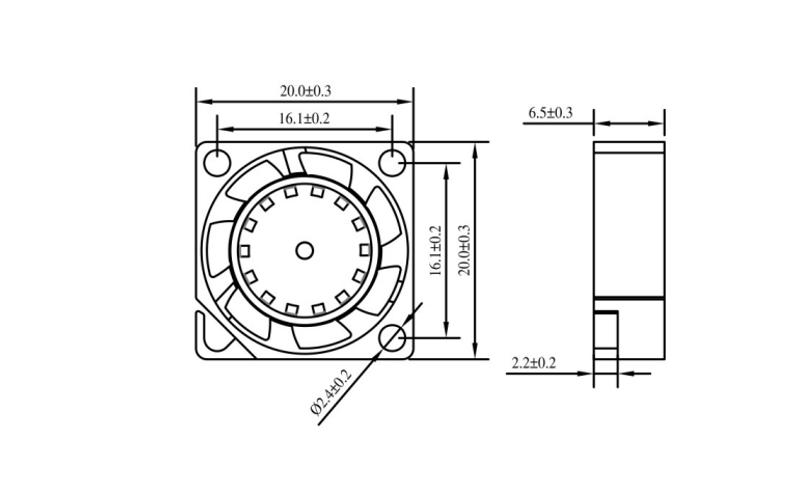

- Dimensions(unit:mm)
| Item No. | Operating Voltage | Maximum Air Flow | Maximum Air Pressure | Rotational Speed | Rate Current | Input Power | Noise | ||
| (V) | (CMM) | (CFM) | (mmAq) | (inchAq) | (RPM) | (A) | (W) | dB(A) | |
| CHA2005RL-A06（b） | 5 | 0.01 | 0.49 | 0.47 | 4.6 | 6500 | 0.10 | 0.50 | 12 |
| CHA2005RM-A06（b） | 5 | 0.02 | 0.65 | 0.90 | 8.8 | 9000 | 0.15 | 0.75 | 19.1 |
| CHA2005RH-A06（b） | 5 | 0.02 | 0.88 | 1.60 | 15.7 | 12000 | 0.20 | 1.00 | 25.3 |
