80x80x38mm series D
GET A QUOTERelated Cooling Fans
- Specification

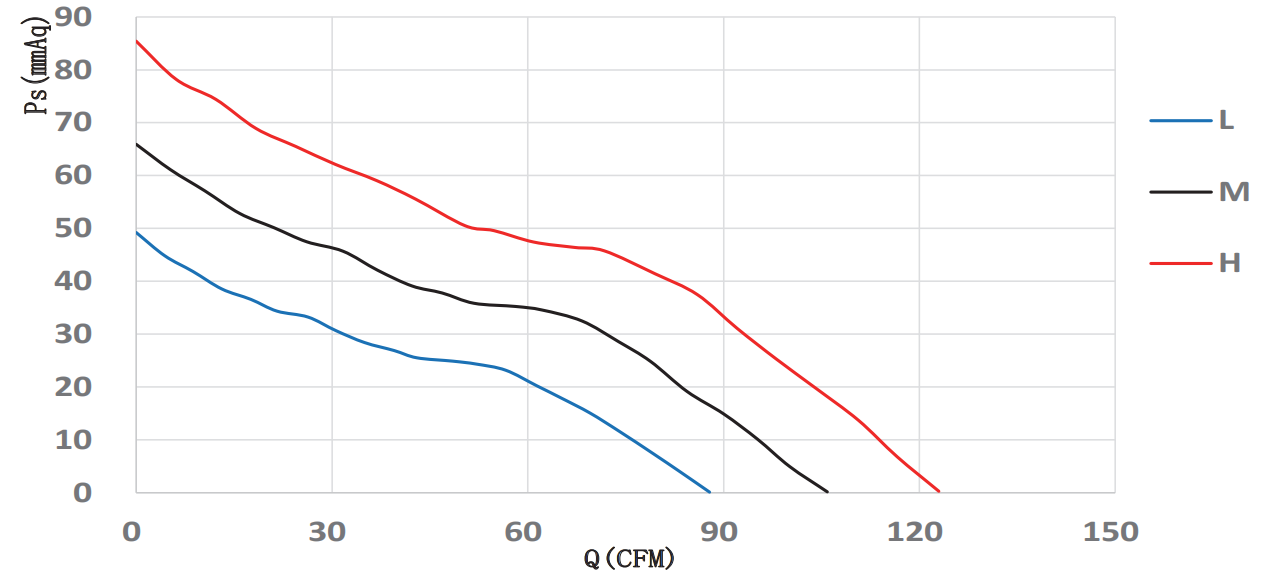

- Characteristics Curves

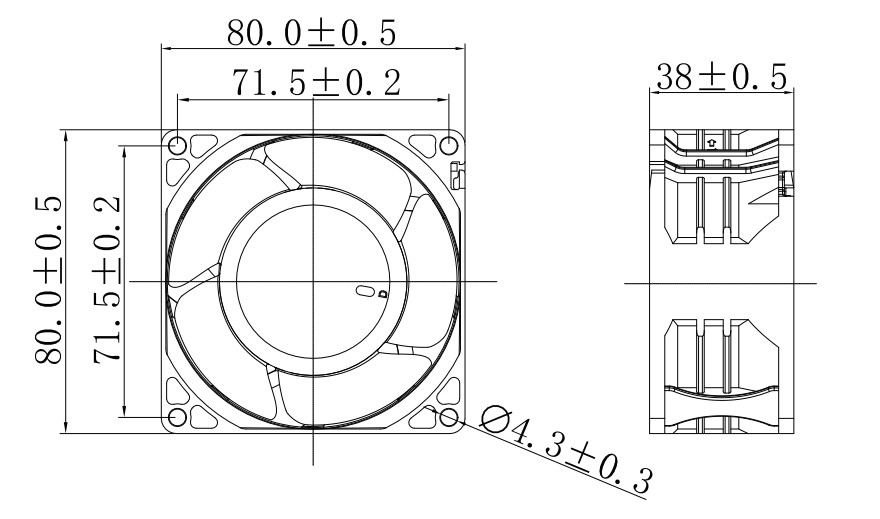

- Dimensions(unit:mm)
| Item No. | Operating Voltage | Maximum Air Flow | Maximum Air Pressure | Rotational Speed | Rate Current | Input Power | Noise | ||
| (V) | — | (CFM) | (mmAq) | — | (RPM) | (A) | (W) | dB(A) | |
| CH(1)8012(a)L-(2)38(b) | 12 | — | 87.86 | 49.24 | — | 10000 | 2 | 14.4 | 61.0 |
| CH(1)8012(a)M-(2)38(b) | 12 | — | 105.90 | 65.92 | — | 12000 | 3 | 22.8 | 64.0 |
| CH(1)8012(a)H-(2)38(b) | 12 | — | 122.98 | 85.43 | — | 14000 | 4 | 33.6 | 69.5 |
| CH(1)8024(a)L-(2)38(b) | 24 | — | 87.86 | 49.24 | — | 10000 | 1 | 14.88 | 61.0 |
| CH(1)8024(a)M-(2)38(b) | 24 | — | 105.90 | 65.92 | — | 12000 | 1.5 | 23.28 | 64.0 |
| CH(1)8024(a)X-(2)38(b) | 24 | — | 122.98 | 85.43 | — | 14000 | 2.1 | 34.8 | 69.5 |
