50x50x25mm series C
GET A QUOTERelated Cooling Fans
- Specification
- Characteristics Curves

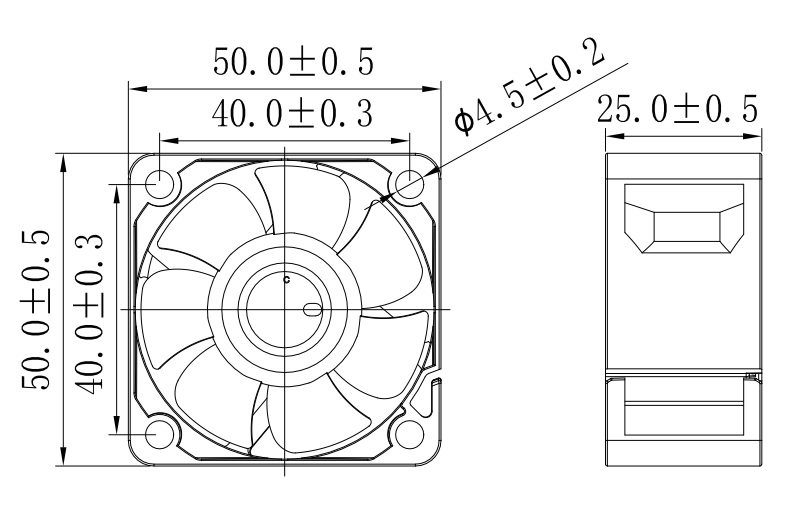

- Dimensions(unit:mm)
| Item No. | Operating Voltage |
Maximum Air Flow |
Maximum Air Pressure |
Rotational Speed |
Rate Current |
Input Power |
Noise | ||
| (V) | — | (CFM) | (mmAq) | — | (RPM) | (A) | (W) | dB(A) | |
| CH(a)5012(b)M-(c)25(d) | 12 | — | 16.893 | 5.85 | — | 5800 | 0.15 | 1.20 | 35.2 |
| CH(a)5012(b)H-(c)25(d) | 12 | — | 18.274 | 6.74 | — | 6200 | 0.18 | 1.44 | 37.2 |
| CH(a)5012(b)X-(c)25(d) | 12 | — | 22.004 | 9.32 | — | 7500 | 0.3 | 2.52 | 41.4 |
| CH(a)5012(b)Y-(c)25(d) | 12 | — | 23.005 | 10.2 | — | 7900 | 0.35 | 3.00 | 44.1 |
