26x26x10mm series A
GET A QUOTERelated Cooling Fans
- Specification

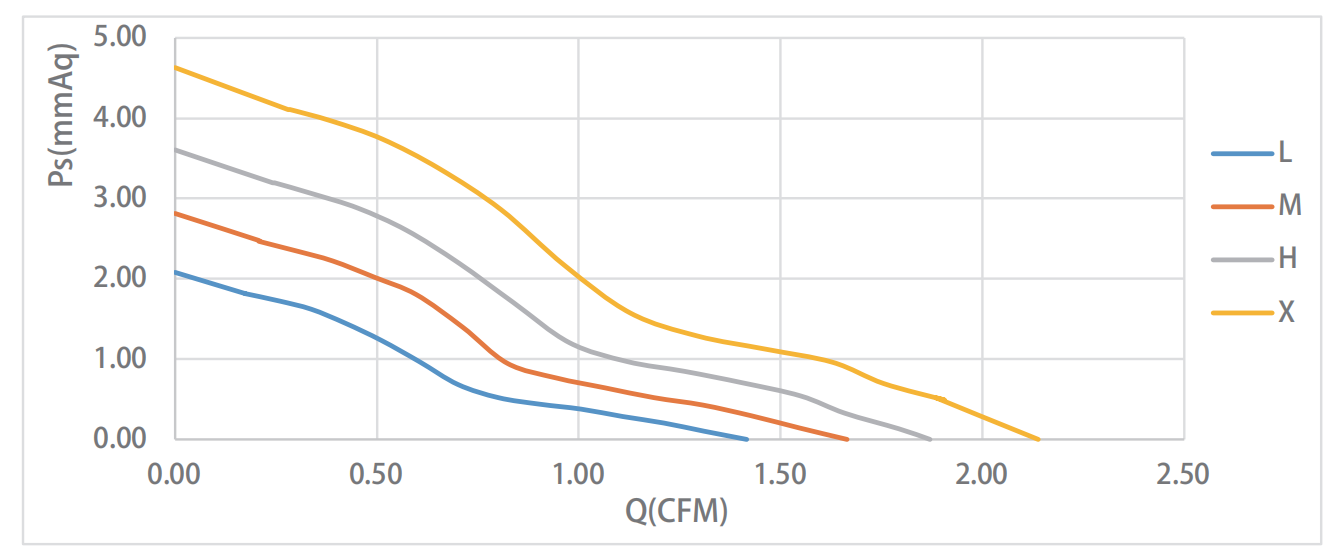

- Characteristics Curves
- Dimensions(unit:mm)
| Item No. | Operating Voltage |
Maximum Air Flow |
Maximum Air Pressure |
Rotational Speed |
Rate Current |
Input Power |
Noise | ||
| (V) | — | (CFM) | (mmAq) | — | (RPM) | (A) | (W) | dB(A) | |
| CH(a)2609(b)L-(c)10(d) | 9 | — | 1.41 | 2.08 | — | 7000 | 0.10 | 0.54 | 16 |
| CH(a)2609(b)M-(c)10(d) | 9 | — | 1.66 | 2.81 | — | 8000 | 0.15 | 0.63 | 21.8 |
| CH(a)2609(b)H-(c)10(d) | 9 | — | 1.87 | 3.61 | — | 9000 | 0.20 | 0.81 | 23.4 |
| CH(a)2612(b)L-(c)10(d) | 12 | — | 1.41 | 2.08 | — | 7000 | 0.08 | 0.48 | 16 |
| CH(a)2612(b)M-(c)10(d) | 12 | — | 1.66 | 2.81 | — | 8000 | 0.12 | 0.50 | 21.8 |
| CH(a)2612(b)H-(c)10(d) | 12 | — | 1.87 | 3.61 | — | 9000 | 0.16 | 0.84 | 23.4 |
