25x25x10mm series A
GET A QUOTERelated Cooling Fans
- Specification
- Characteristics Curves

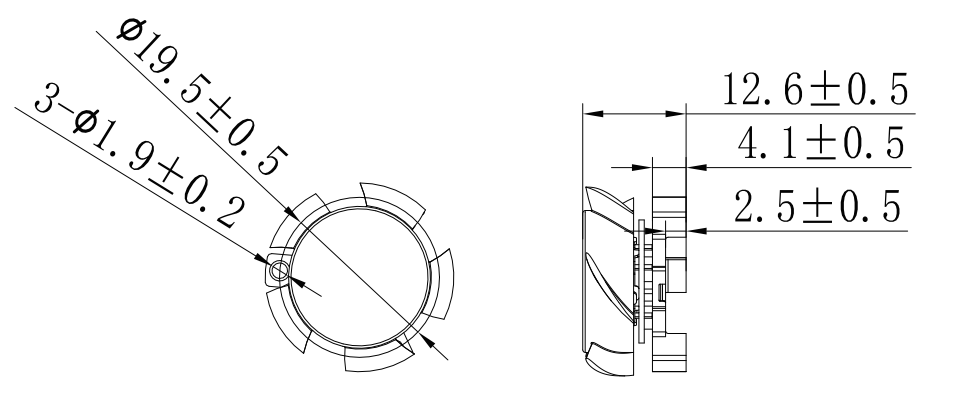

- Dimensions(unit:mm)
| Item No. | Operating Voltage | Maximum Air Flow | Maximum Air Pressure | Rotational Speed | Rate Current | Input Power | Noise | ||
| (V) | — | (CFM) | (mmAq) | — | (RPM) | (A) | (W) | dB(A) | |
| CH(1)2505(a)L-(2)10(b) | 5 | — | 1.12 | 2.14 | — | 8500 | 0.15 | 0.50 | 20.5 |
| CH(1)2505(a)M-(2)10(b) | 5 | — | 1.59 | 3.49 | — | 11000 | 0.20 | 0.70 | 24.3 |
| CH(1)2505(a)H-(2)10(b) | 5 | — | 1.87 | 4.98 | — | 13000 | 0.25 | 0.90 | 29.1 |
| CH(1)2512(a)L-(2)10(b) | 12 | — | 1.12 | 2.14 | — | 8500 | 0.10 | 0.48 | 20.5 |
| CH(1)2512(a)M-(2)10(b) | 12 | — | 1.59 | 3.49 | — | 11000 | 0.15 | 0.72 | 24.3 |
| CH(1)2512(a)H-(2)10(b) | 12 | — | 1.87 | 4.98 | — | 13000 | 0.20 | 0.96 | 29.1 |
