130*130*40mm series D
GET A QUOTERelated Cooling Fans
- Specification

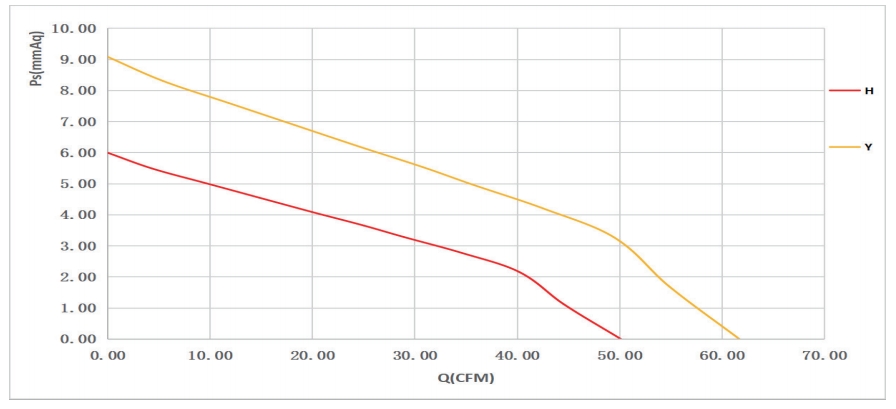

- Characteristic curves

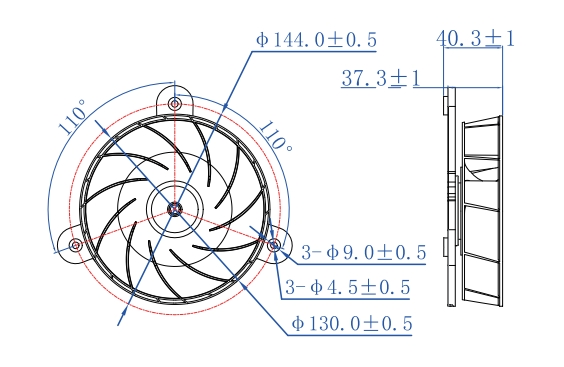

- Dimensions(unit:mm)
| Item No. | Operating Voltage |
Maximum Air Flow |
Maximum Air Pressure |
Rotational Speed |
Rate Current |
Input Power |
Noise | ||
| (V) | — | (CFM) | (mmAq) | — | (RPM) | (A) | (W) | dB(A) | |
| CH(a)13012(b)H-(c)40(d) | 12 | — | 50.12 | 6.00 | — | 1300 | 0.3 | 2.16 | 28.7 |
| CH(a)13012(b)Y-(c)40(d) | 12 | — | 61.70 | 9.09 | — | 1600 | 0.6 | 4.37 | 33.7 |
